1. Cable Lugs

Purpose: Cable lugs are used to terminate cable ends and facilitate a secure connection to electrical equipment, busbars, or other cables.

Key Features:

• Made from high-conductivity materials like copper or aluminum.
• Suitable for low, medium, and high voltage cables.
• Designed for crimping or soldering for mechanical and electrical integrity.

Applications:

• Connecting power cables to switchgear, transformers, and panels.
• Industrial and utility installations requiring reliable connections.

2. Cable Glands

Purpose: Cable glands are used to securely attach and seal the end of a cable to electrical equipment. They provide strain relief, mechanical protection, and environmental sealing.

Key Features:

• Made from brass, aluminum, stainless steel, or plastic.
• Provide ingress protection (IP) against dust and water.
• Accommodate armored and unarmored cables.

Applications:

• Indoor and outdoor installations.
• Power plants, industrial plants, telecom equipment, and outdoor enclosures.

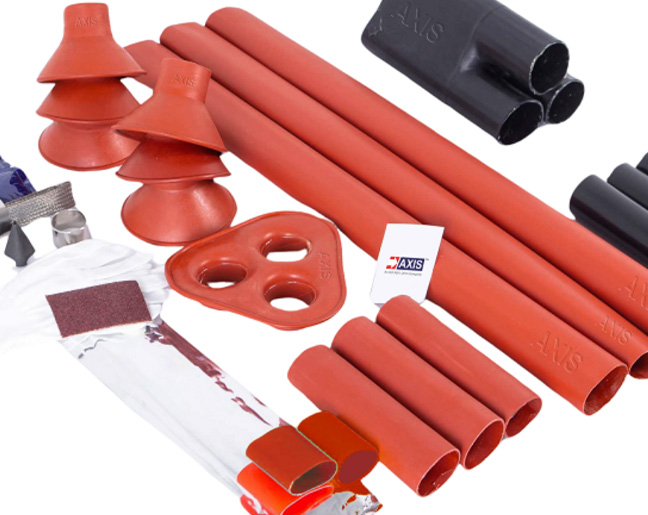

3. Heat Shrink Tubing

Purpose: Heat shrink tubing is used to insulate, protect, and provide a sealing layer over cable joints or terminations.

Key Features:

• Made of thermoplastic material that shrinks when heated.
• Offers electrical insulation, mechanical protection, and environmental sealing.
• Available in various colors, diameters, and shrink ratios.

Applications:

• Insulating splices and terminations.
• Protection against moisture, chemicals, and abrasion.
• Stress control for high-voltage terminations.

Installation:

• Slide over the cable or joint.
• Apply heat using a heat gun or oven until it tightly conforms to the cable surface.

4. Cold Shrink Tubing

Purpose: Cold shrink tubing provides insulation, protection, and sealing for cable joints or terminations without the use of heat.

Key Features:

• Made from pre-stretched elastomeric material on a removable core.
• Shrinks automatically when the core is removed, forming a tight seal.
• Excellent for high-voltage applications where heat application is not feasible.

Applications:

• EHV/MV/LV cable terminations and joints.
• Hazardous or confined environments where heat application is restricted.

Installation:

• Place over the joint or cable end.
• Remove the core to allow the tubing to shrink and conform to the cable.
